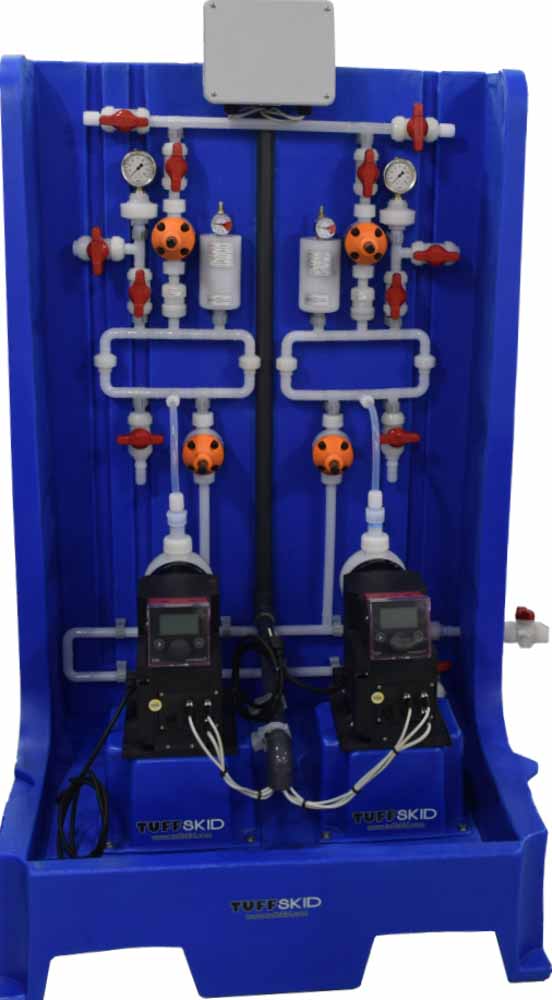

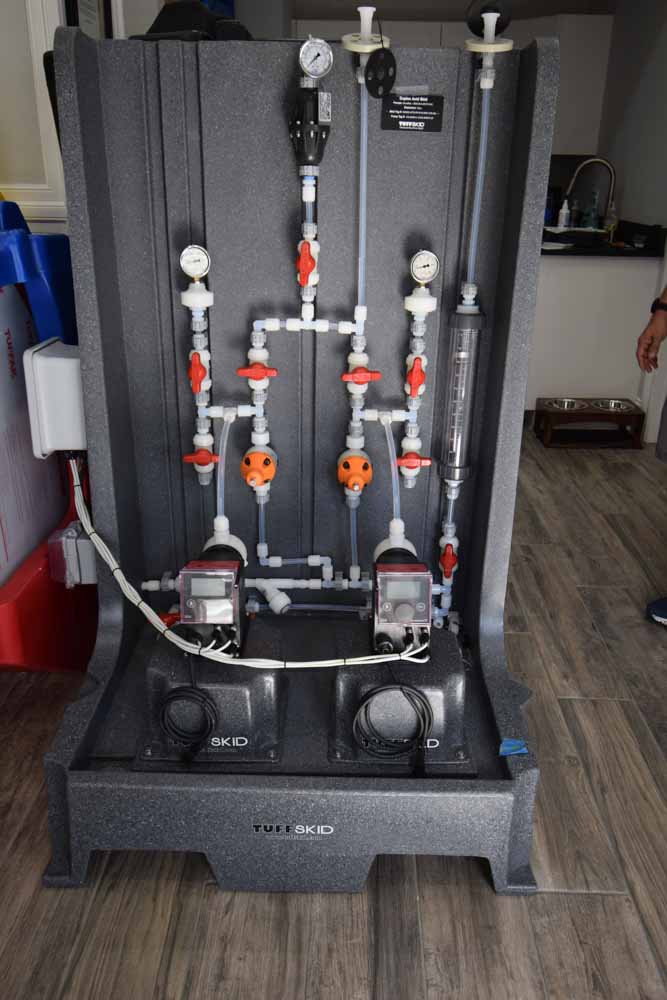

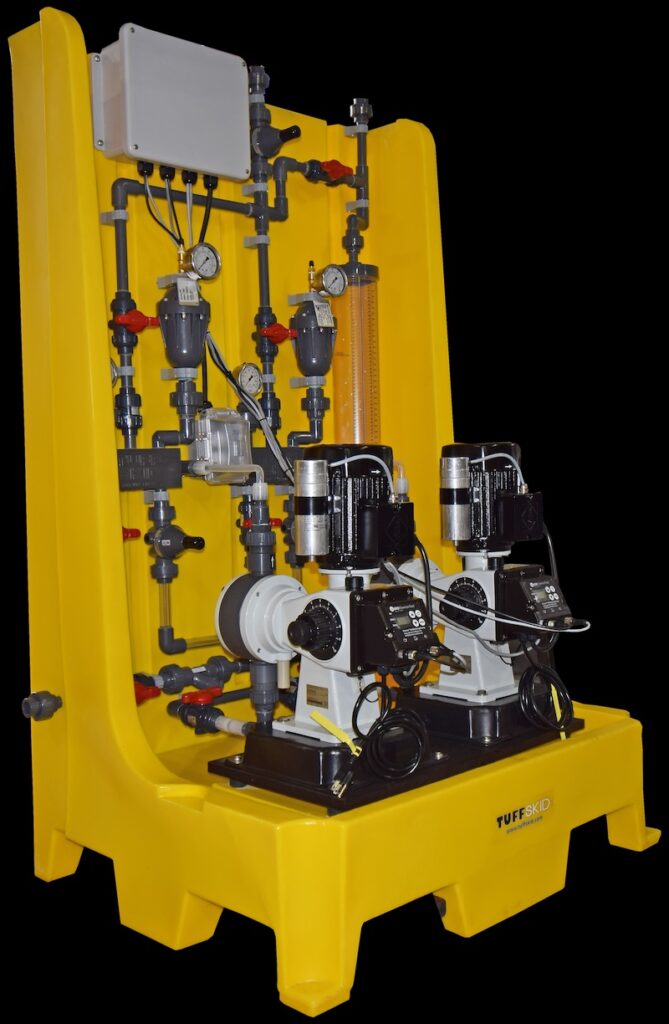

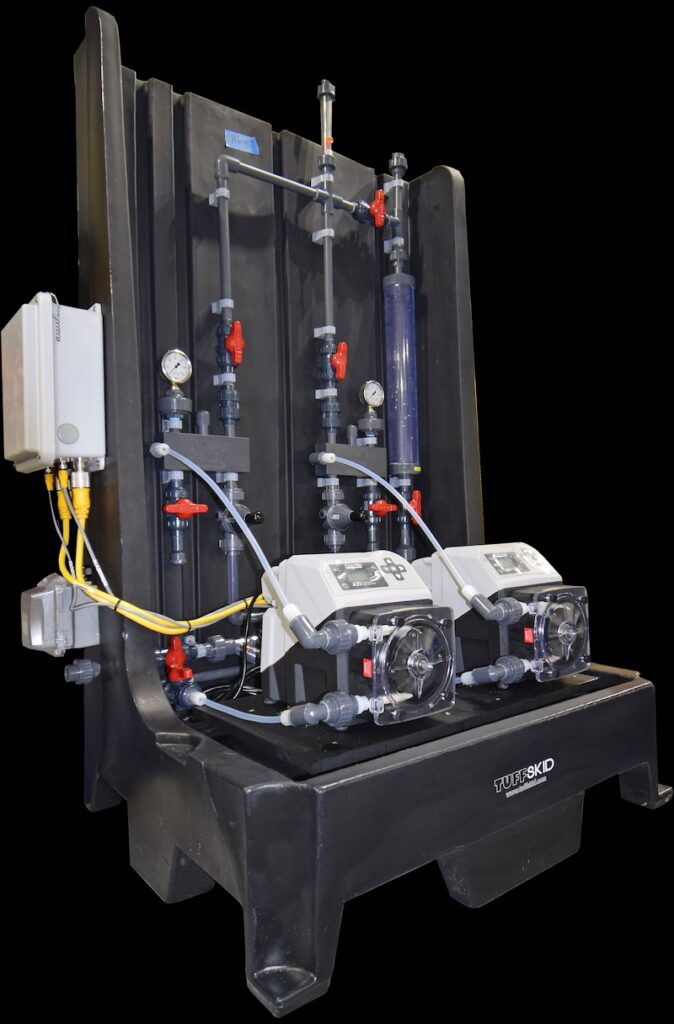

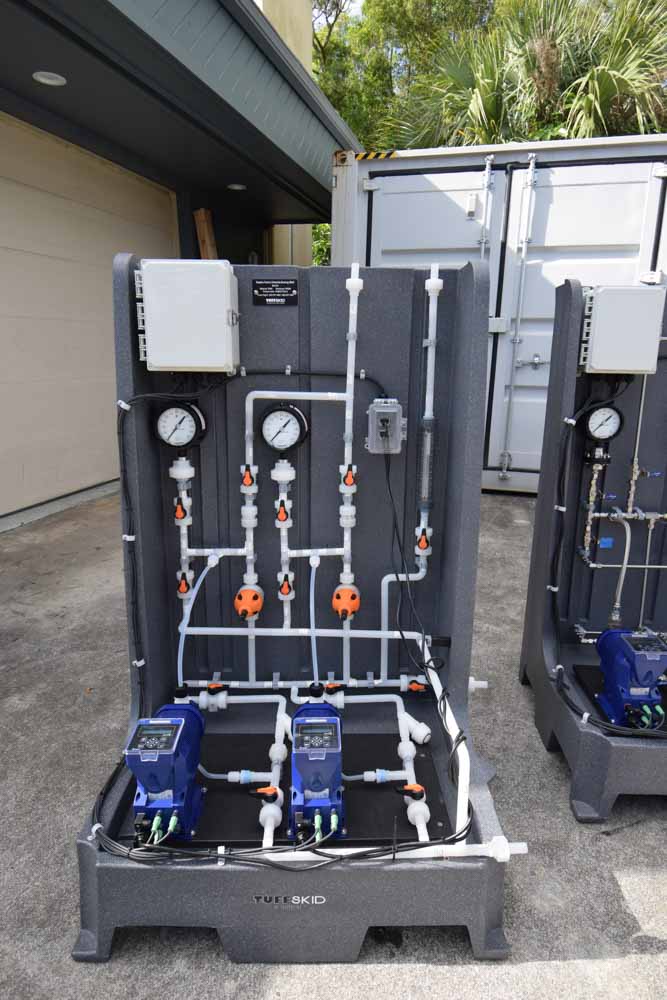

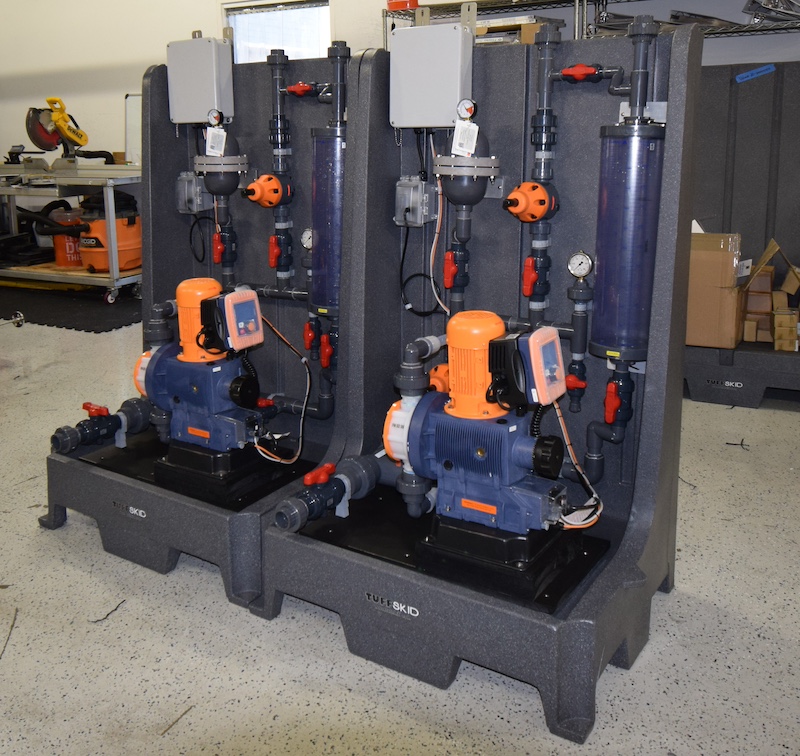

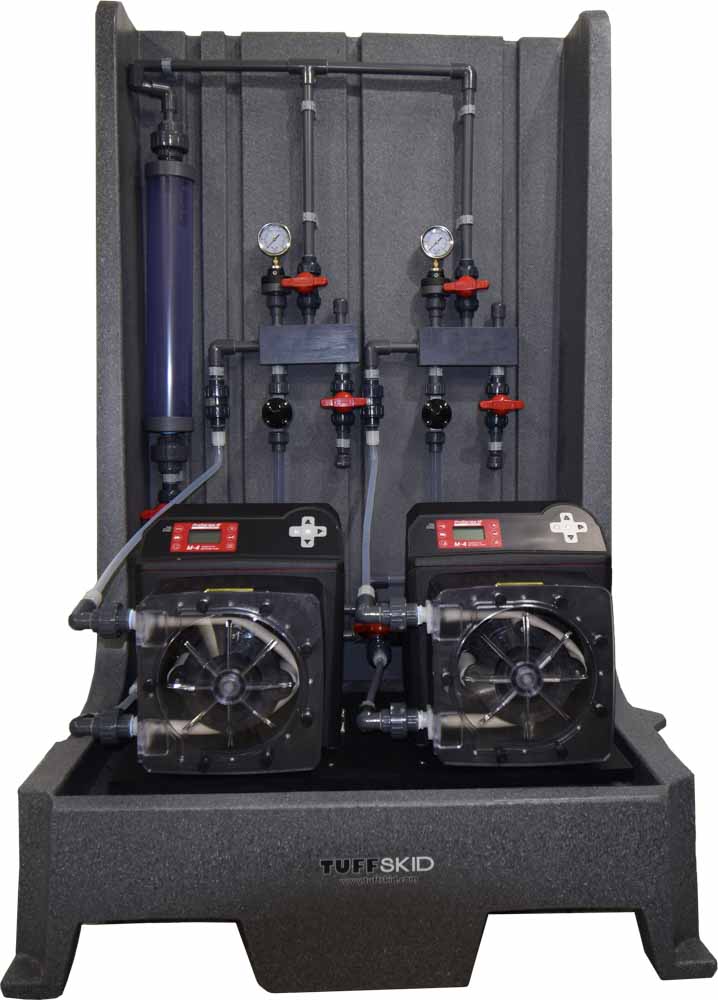

Often referred to as a Duplex TuffSkid the 37” Floor model is perfect for fitting into the smaller spaces that require big equipment (see dimensions tab below). We build this skid with any number of pumps as long as the size fit’s the pump mounting area. Simplex or triplex the skid is capable of handling 400 pound on its pump deck due to the engineering in making the fully rotationally molded HDPE pump skid shell. Basic 37” Floor Models are built in ½” Sch 80 PVC piping, series 21 Asahi Ball Valves and TuffSkid Manifold Bocks(TMB‘s). These TMB’s are designed to give a superior robust mounting surface and to eliminate some of the joints required to install the required equipment. Mounted with the TMB’s are Chemline Relief Valves, Chemline Gages with Isolators, HP Drain and Flush Valves and Blacoh Pulsation Dampeners. Further additions to the TuffSkid Wall Mount system is a Calibration Column piped for use in a non-flooded application. The relief path for all TuffSkids in standard PVC is via Clear Sch 80 PVC back to the inlet header. Inlet headers come complete with Y strainer and inlet valve.
All TuffSkids are constructed of a chemical resistant High Density Polyethylene (HDPE) and are 100% UV stabilized. Elastomers are selected to accommodate chemicals pumped.
Pumps are selected to meet system requirements and upgrades are readily available for harsh chemical, high pressures and large capacity systems.
